Leveraging the inherent properties of graphite, this heat exchanger's rectangular hole pattern provides exceptional thermal conductivity and chemical inertness. The design promotes efficient fluid flow, resulting in a durable, efficient, and reliable solution for industrial heat exchange.
Item nº :
JKPedido (MOQ) :
1Pagamento :
Alipay L/C T/T westernunion PaypalOrigem do produto :
ChinaCor :
CustomizedPorto de embarque :
shanghaiTempo de espera :
please contact 504893184@qq.comPeso :
please contact CP +8613696510409Material :
GraphiteTemperatura de trabalho :
-30 to 150 ℃Pressão de trabalho :

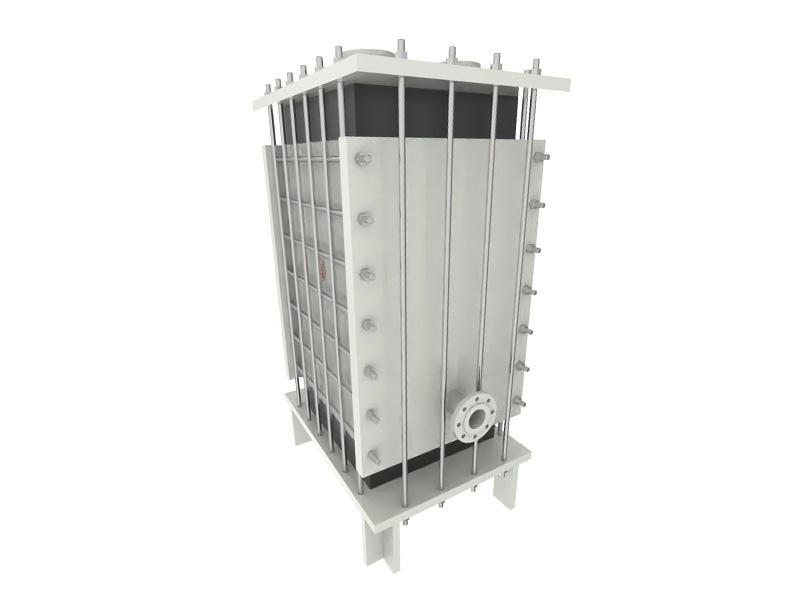

≤0.3 MpaRectangular Hole Type Graphite Heat Exchanger
The sealing system integrates three key components: a graphite head, a one-piece graphite heat exchanger block, and a sealing hot plate. Due to its seamless, monolithic design, the exchanger block exhibits high structural strength and excellent shock resistance by withstanding pressure as a complete unit. Meanwhile, the water-side plate is fabricated as a casting, allowing for straightforward repair, assembly, and disassembly.
Product Advantages
The Rectangular Hole Type Graphite Heat Exchanger offers excellent heat transfer performance, superior resistance to chemical corrosion, even fluid distribution, a large surface area for heat exchange, strong mechanical durability, stable operation, easy maintenance, and an extended service lifespan.

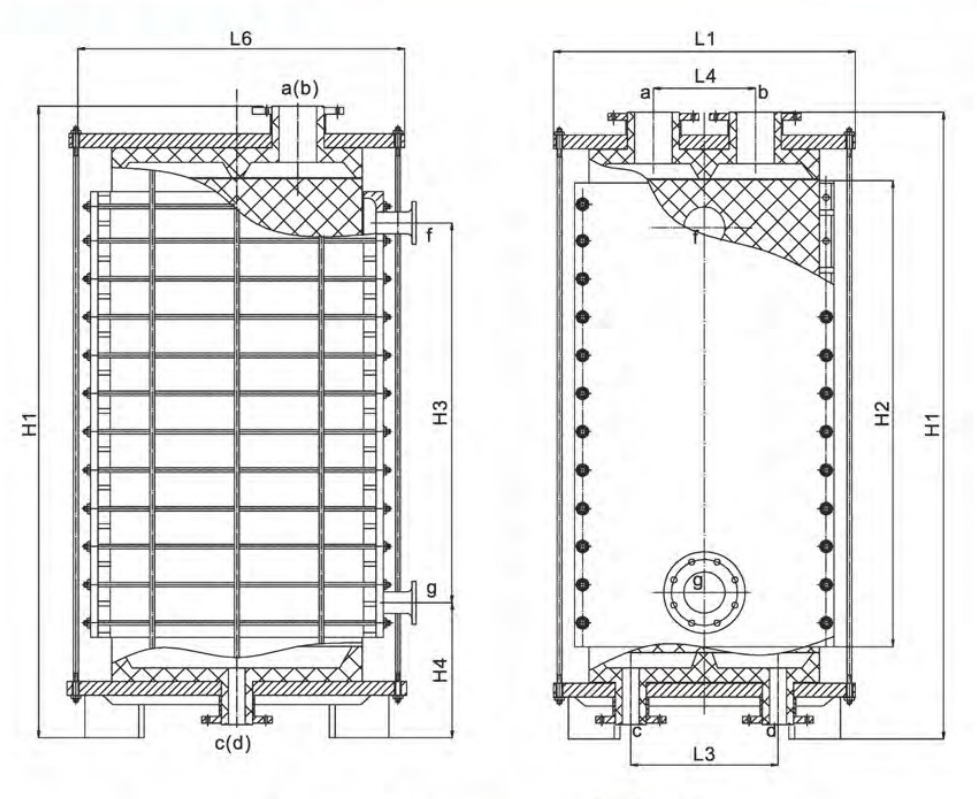

Structural Diagram
| Parts details | |
| 1 | Liquid inlet |
| 2 | Upper cover plate |
| 3 | Graphite upper head |
| 4 | Graphite upper tube sheet |
| 5 | Intake |
| 6 | Graphite baffle |
| 7 | Graphite heat exchange tube |
| 8 | Equipment shell |
| 9 | Outfall |
| 10 | Graphite lower tubesheet |
| 11 | Lower sealing plate |
| 12 | Lower sealing plate |
| 13 | Q235 lower cover plate |
| 14 | Equipment foot |
Um dispositivo de transferência de calor muito confiável e eficiente é o trocador de calor de grafite com cabeçote flutuante GH. Ele é composto por tubos, um cabeçote flutuante, um casco e outras peças.
