The noise-free premium stainless steel submerged pump features a compact design with high-efficiency motor and low vibration system for quiet operation. Built from corrosion-resistant stainless steel, it ensures consistent water flow and extended service life.
Item nº :
TYPedido (MOQ) :
1Cor :
CustomizedPacote :
CustomizedMaterial :
SteelTemperatura de trabalho :
Fluoroplastic material：-20 to 200 ℃； Engineering plastic material：-20 to 80 ℃ ；Stainless steel material：-20 to 200 ℃ .Pressão de trabalho :
1.6 MPaNoise-Free Premium Stainless Steel Submerged Pump
TY submerged pump is designed in accordance with national standards. According to the working conditions of users, the submerged depth ranges from 1 to 8 meters.The main part of the pump is placed in the liquid. It has the advantages of wide corrosion resistance range, high efficiency,safe and reliable shaft connection structure, convenient disassembly and so on. It can be pumped without filling liquid. Because the axial force and radial force generated by the pump operation are supported by rolling bearings and sliding bearings respectively, it runs quietly and without noise.
Product Advantages
1.The flow-passage parts, including the pump body, cover, and impeller, are manufactured using premium stainless steel, fluoroplastics, and engineering plastics for excellent durability.
2.Designed without a shaft seal, the pump uses bearings and sleeves made of graphite, PTFE, and other advanced materials to greatly extend service life.
3.The pump can operate without liquid pre-filling, works at depths up to 8m below the liquid surface, and requires no separate lubrication or cooling water, thereby reducing overall energy consumption.
Product Application
Noise-free premium stainless steel submerged pump is widely used in industries such as petroleum, chemicals, alkali production, smelting, rare earth processing, pesticides, dyes, pharmaceuticals, papermaking, electroplating, electrolysis, and electronics for transporting strongly corrosive liquids.

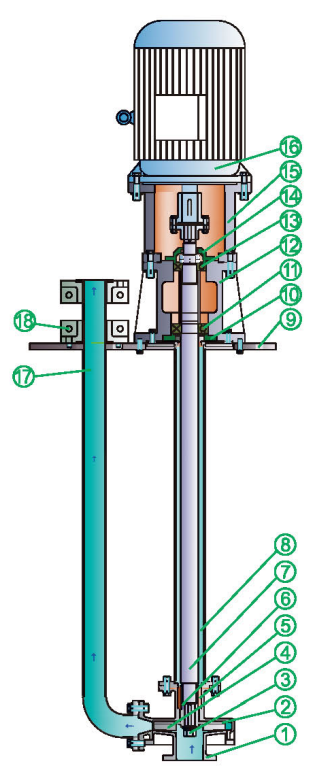

Material List
| Part | Material | Part | Material |
| ① Pump casing | 304/316/316L | ⑩ Front gland of bearing | HT200 |
| ② Pump cover | 304/316/316L | ⑪ Front bearing | Gcr15 |
| ③ Impeller nut | 304/316/316L | ⑫ Bearing box | HT200 |
| ④ Impeller | 304/316/316L | ⑬ Back bearing | Gcr15 |
| ⑤ Shaft sleeve | GRAPHITE/SIC | ⑭ Back gland of bearing | HT200 |
| ⑥ liner bushing | PTFE | ⑮ Bracket | HT200 |
| ⑦ Main shaft | 304/316/316L | ⑯ Motor | Customized |
| ⑧ Main pipeline | 304/316/316L | ⑰ Drainpipe | 304/316/316L |
| ⑨ Square plate | A3 | ⑱ Outlet flange | HT200 |

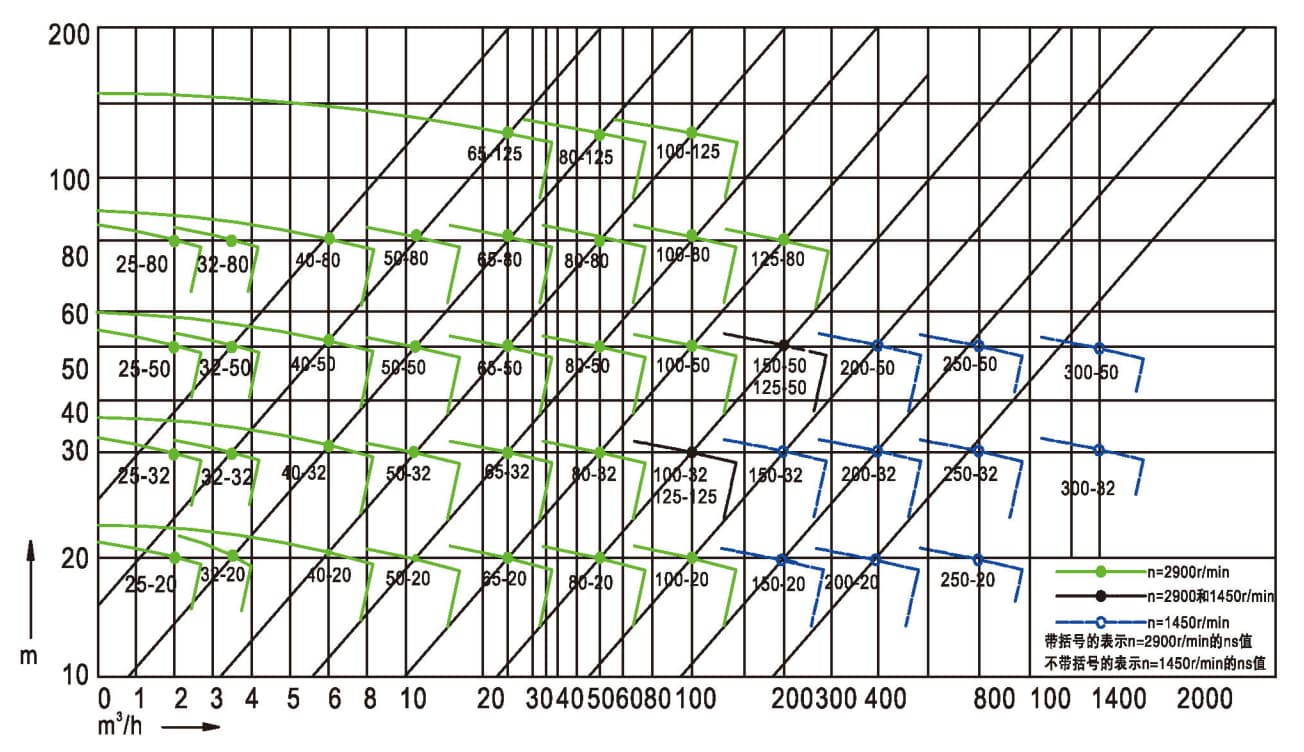

Performance Range
Performance range:
design pressure: 1.6Mpa;Flow:1.5~
1000m³/h;Lif:15~125m;Power:2.2~185KW
Applicable temperature:
①fuoroplastic material:-20~120℃ (acid-base medium ofany concentration);
②Engineering plastic material:-20~80℃(dilute acid and alkali medium);
③Stainless steel material:-20~200℃(alkali medium).
The noise-free premium stainless steel submerged pump features a compact design with high-efficiency motor and low vibration system for quiet operation. Built from corrosion-resistant stainless steel, it ensures consistent water flow and extended service life.
